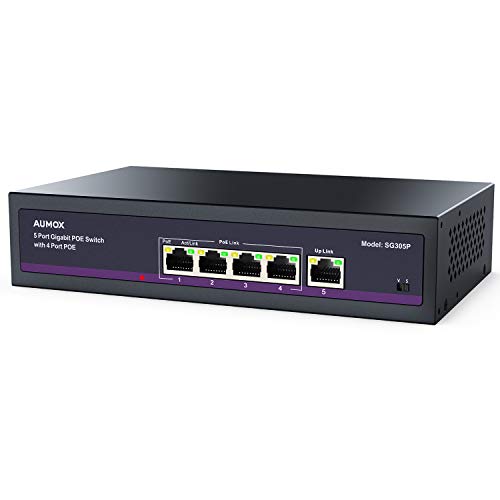

Aumox 5 Port Gigabit PoE Switch, 4 Port PoE 78W, Gigabit Ethernet Unmanaged Network Switch, Sturdy Metal Housing, Plug…

Dimensions (W x D x H): 7.9in x 4.6in x 1.7in

Hardware Features:

Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

MAC Address Table: 2K

Interface:

4*10/100/1000Mbps RJ45 Ports(Data/PoE)

1*10/100/1000Mbps RJ45 Ports(Data)

Auto Negotiation/Auto MDI/MDIX

Support IEEE 802.3x full-duplex and Backpressure half-duplex

Forwarding Rate:

100BASE-tx:148800PPS/port

1000BASE-tx:1488000PPS/port

PoE Supply:

Port 1 to Port 4 support standard IEEE802.3at/af

Power(maximum power for each port is 30W)，

PoE power type is end-span(12+, 36- line pair)

Input Voltage:

AC：100-240V~50/60Hz

DC：52V /1.45A（Power Adapter Output）

Power consumption:

in full configuration:

Power Supply:78W

Working Environment:

Operating Temperature: 14℉~131℉

Storage Temperature: -40℉~158℉

Make sure this fits by entering your model number.
【4-Port 78W POE】Designed with IEEE802.3af/at standard, Aumox POE ethernet switch can transmit network data and power at the same time. This gigabit switch offers a maximum 78W POE power output in total. Single-port POE power up to 30W, meets power supply requirements of various applications.
【Gigabit Ethernet】Aumox network switch features 100/1000 Mbps ports, enables ultra-fast wired connectivity and instant large files transferring. Unmanaged gigabit switch, easy to setup, plug and play.
【Reliable Fanless Metal Housing】Metal housing design makes the POE switch reliable to use in different use cases. Fanless design give you a quiet and noise free environment.
【One-Key VLAN】Supports one-key VLAN mode, and ports are isolated from each other. Effectively suppress network faults such as network storms, ensuring good network transmission performance and security.
【Intelligent Recognition】Intelligently identify whether the IP terminal supports power supply,protect powered device.
